Cement Vertical Mill Control System

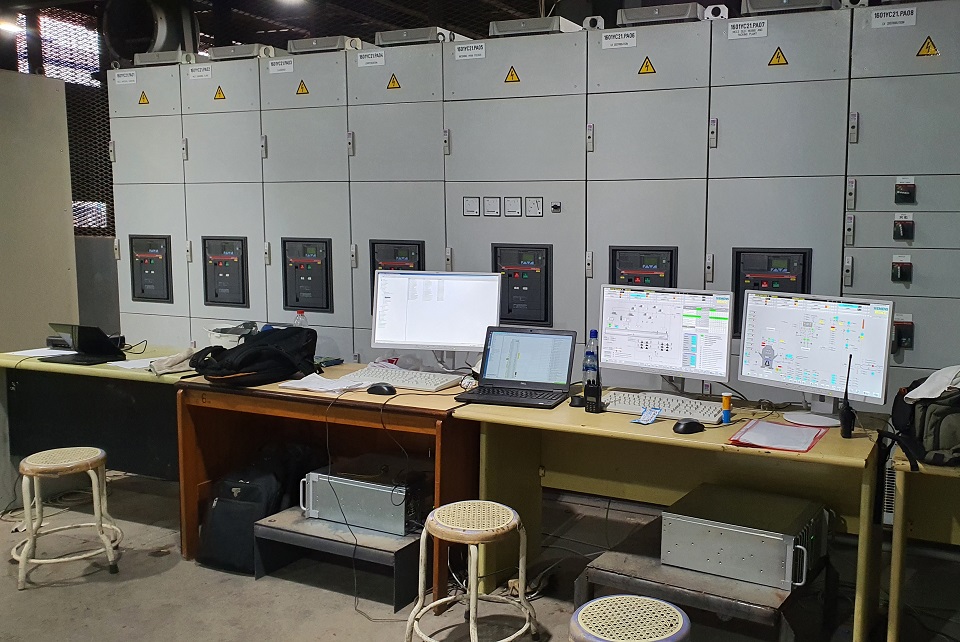

The Cement Vertical Mill is controlled by a Siemens SIMATIC S7-400 PLC integrated with a Siemens WinCC SCADA system, providing centralized monitoring, control, and data visualization for all mill operations. The automation system ensures reliable, safe, and efficient operation while optimizing grinding performance, equipment protection, and energy consumption.

The control architecture incorporates Siemens SINAMICS G120 and SINAMICS G150 Variable Speed Drives (VSDs) for process equipment requiring variable speed control. Communication between the PLC and field devices is established through a PROFIBUS DP network, enabling high-speed, deterministic data exchange for control commands, status monitoring, diagnostics, and process feedback.

Control System Architecture
The automation system consists of the following major components:

PLC: Siemens SIMATIC S7-400
HMI/SCADA: Siemens WinCC SCADA
Variable Speed Drives:Siemens SINAMICS G120 for auxiliary motors and medium-power applications
Siemens SINAMICS G150 for high-power mill-related drives
Communication Network: PROFIBUS DP
Field Devices: Sensors, transmitters, actuators, motor starters, protection relays, and instrumentation
